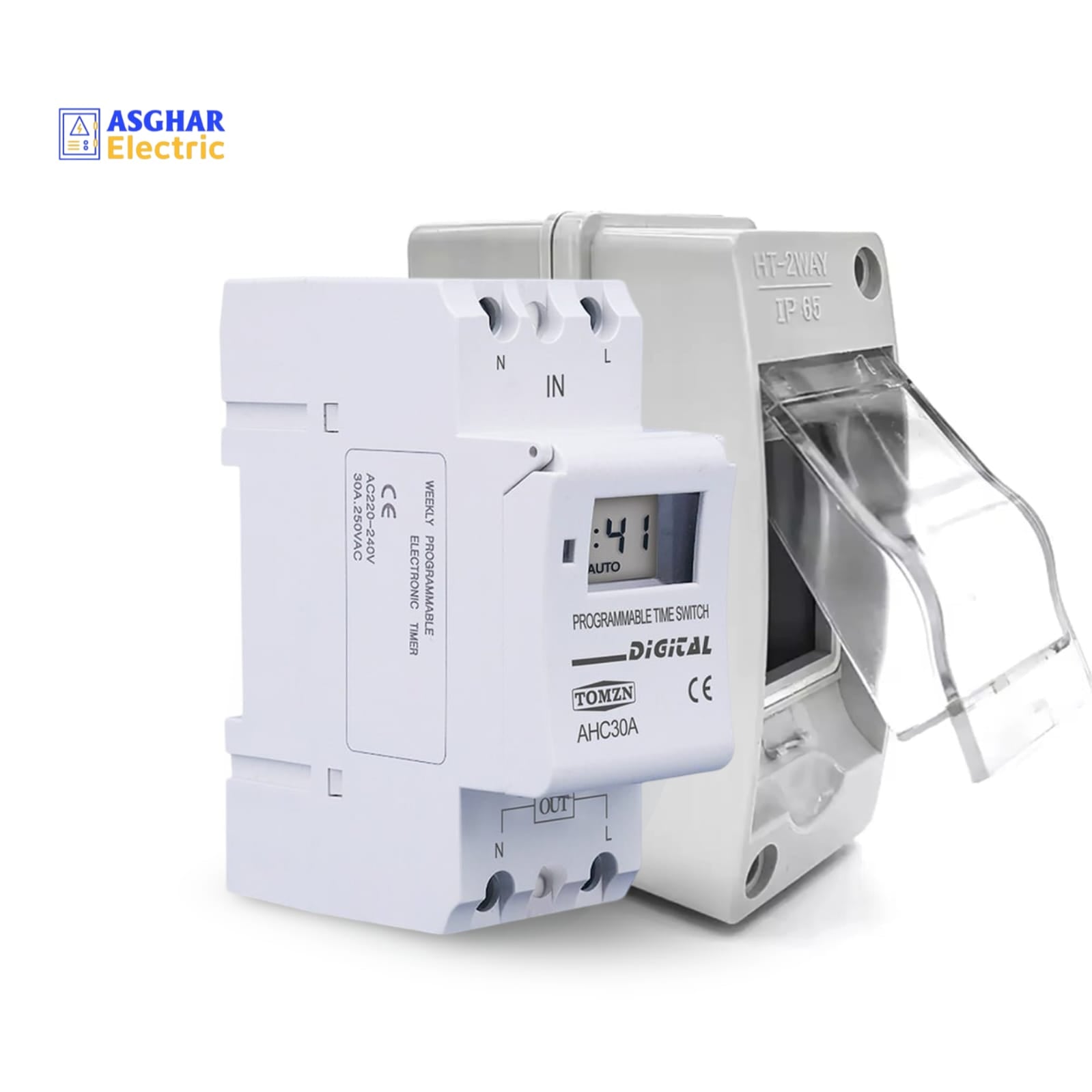

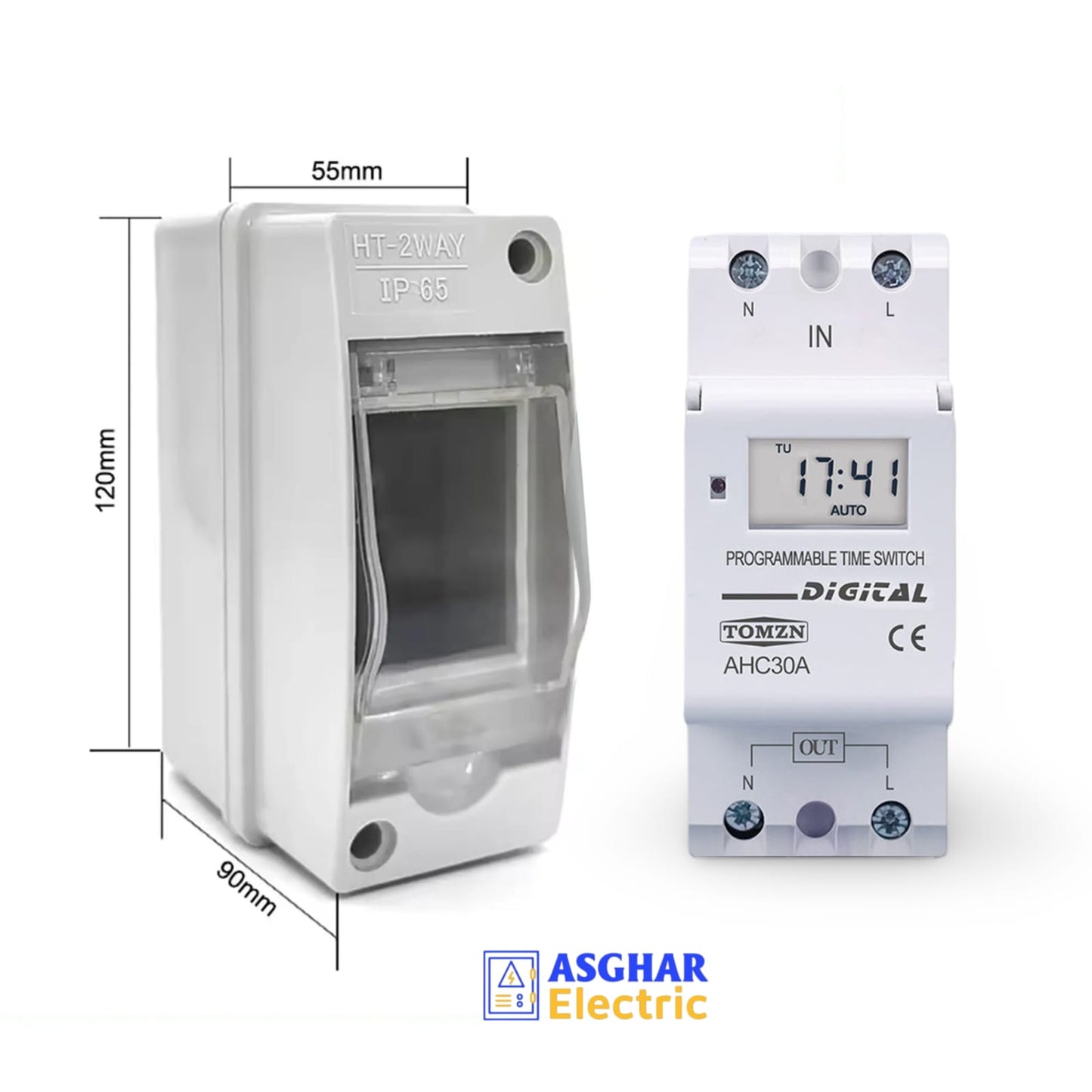

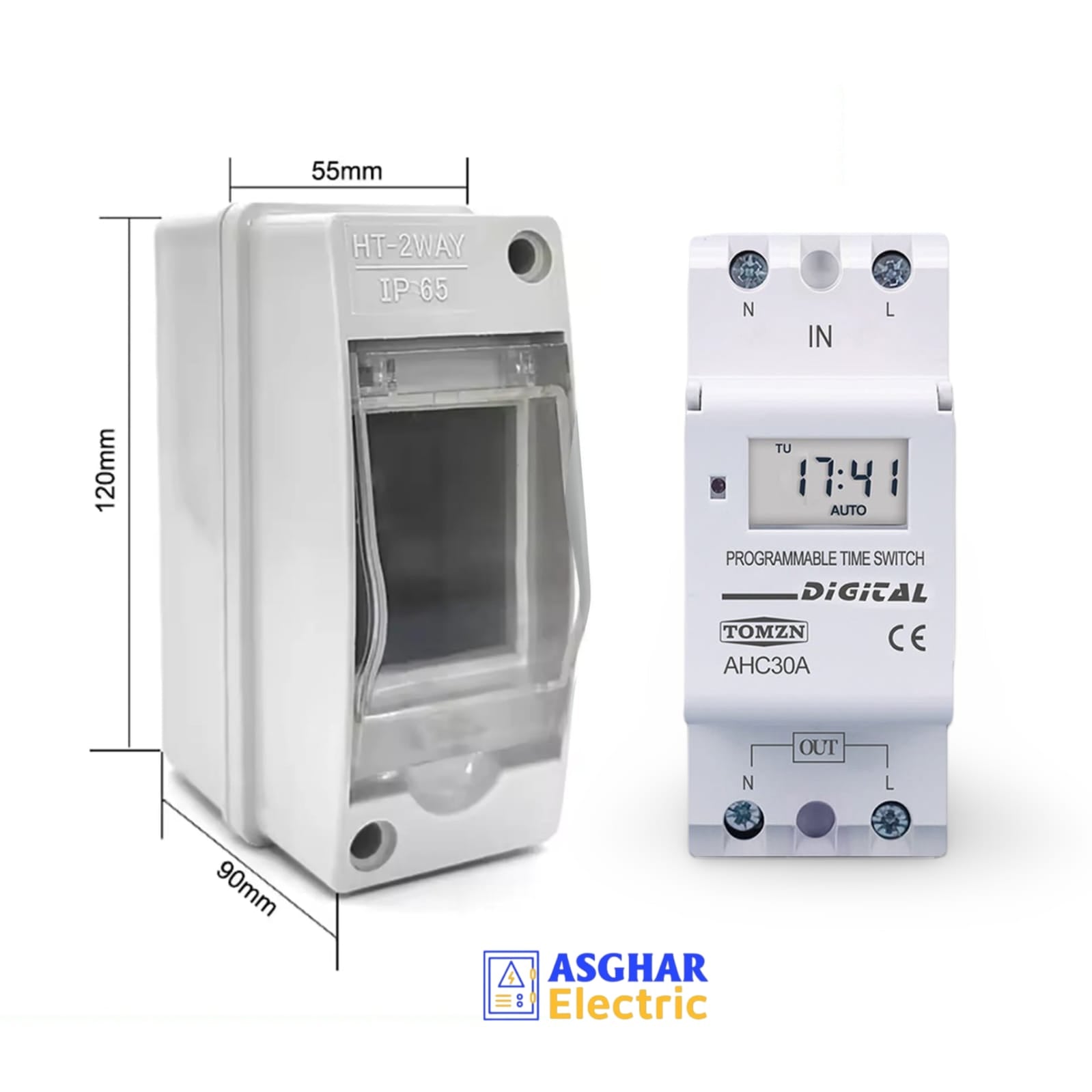

Weekly Programmable Timer with DP box | Asghar Electric

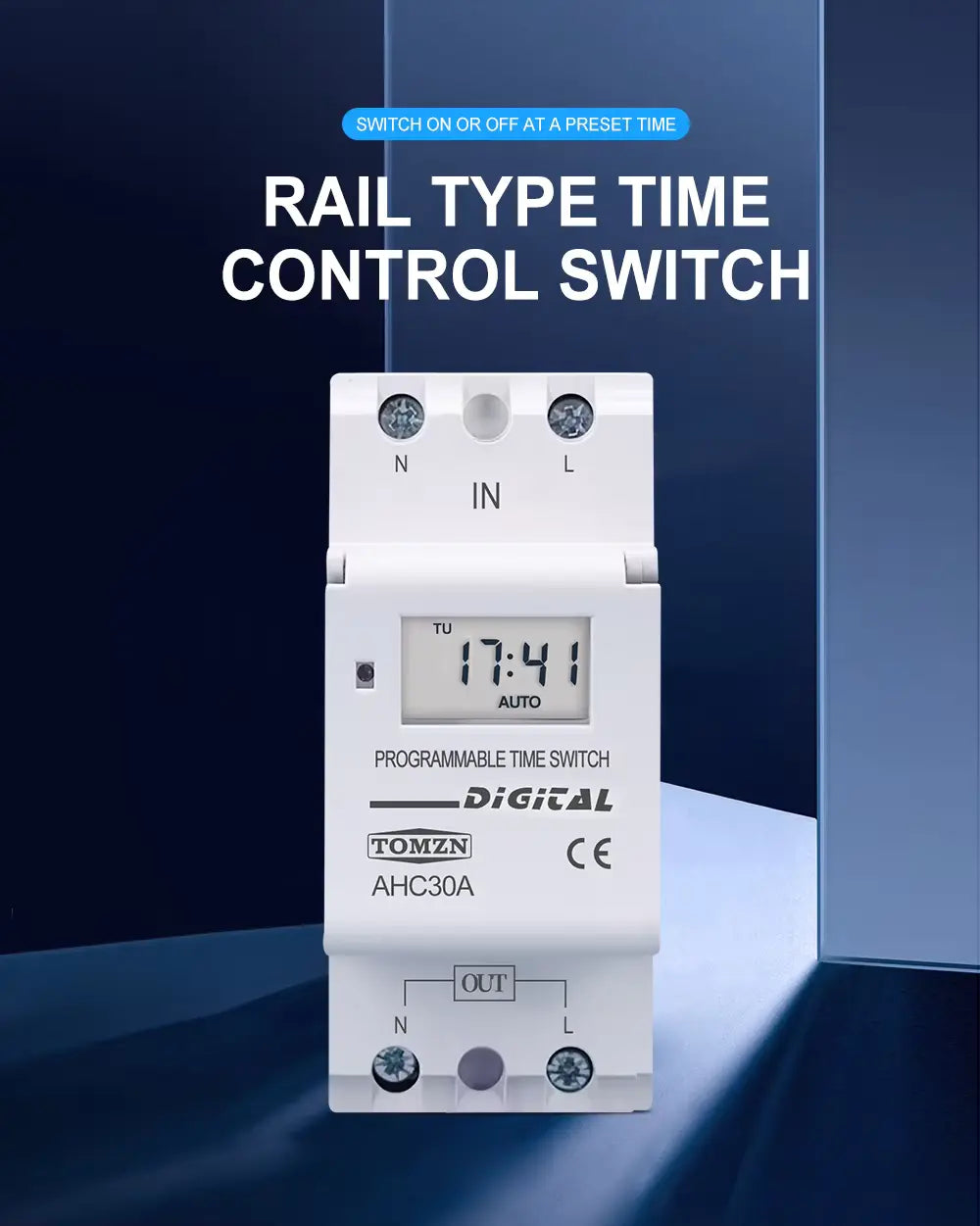

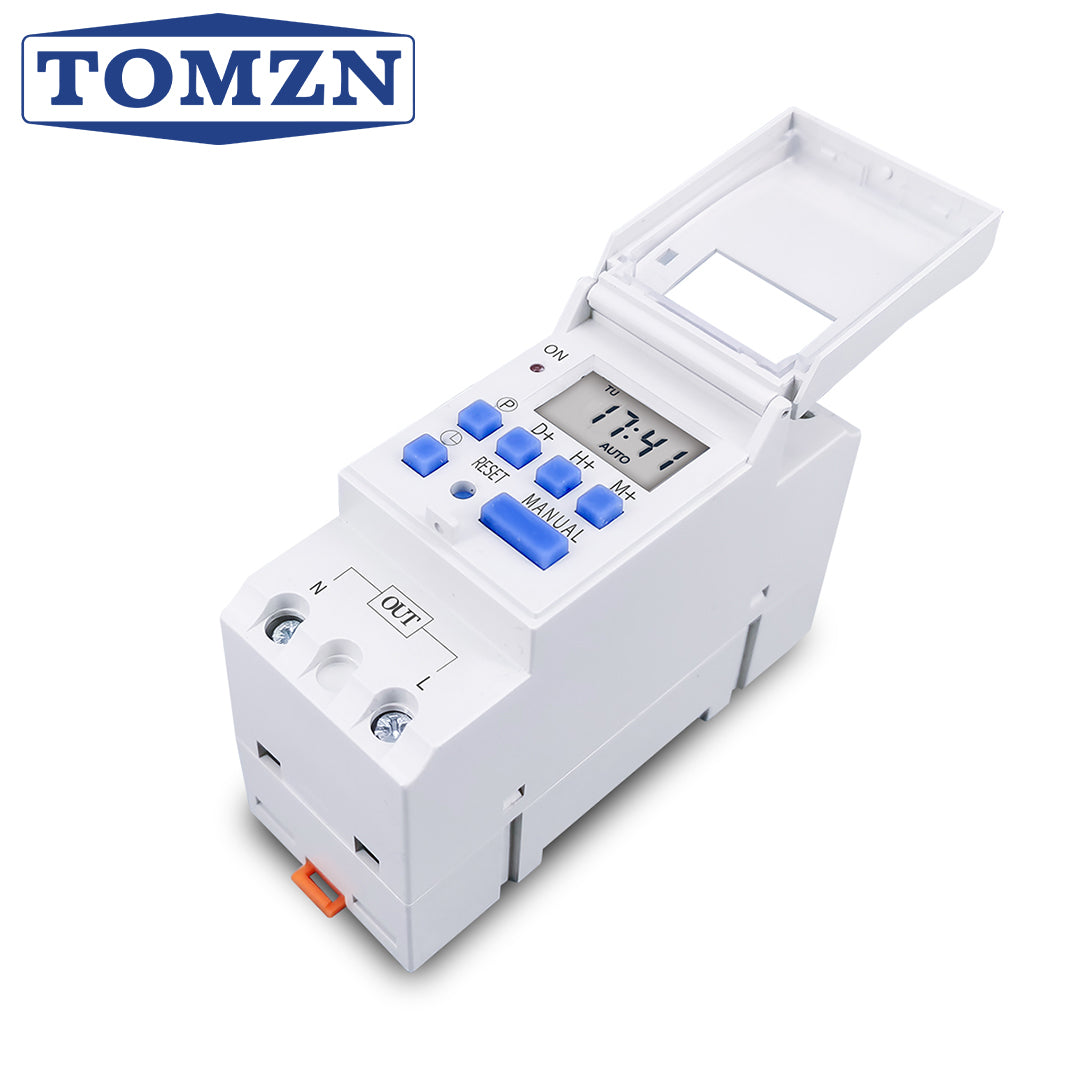

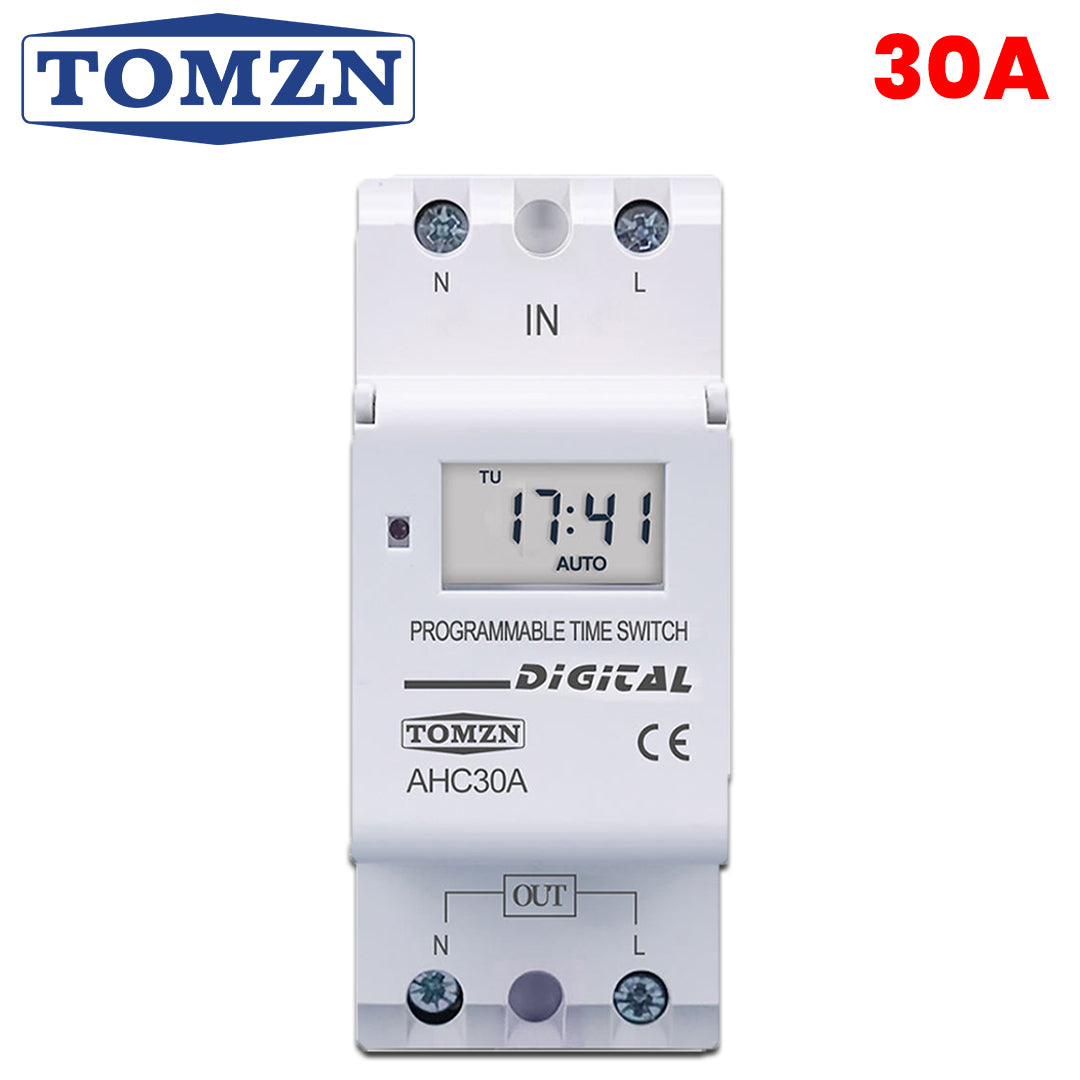

The TOMZN AHC30A is a high-precision digital timer switch designed for AC current applications, ideal for industrial, commercial, and home automation needs in Pakistan. It allows you to program daily and weekly schedules with 16 ON/OFF settings, ensuring efficient energy management and convenience.

Key Features:

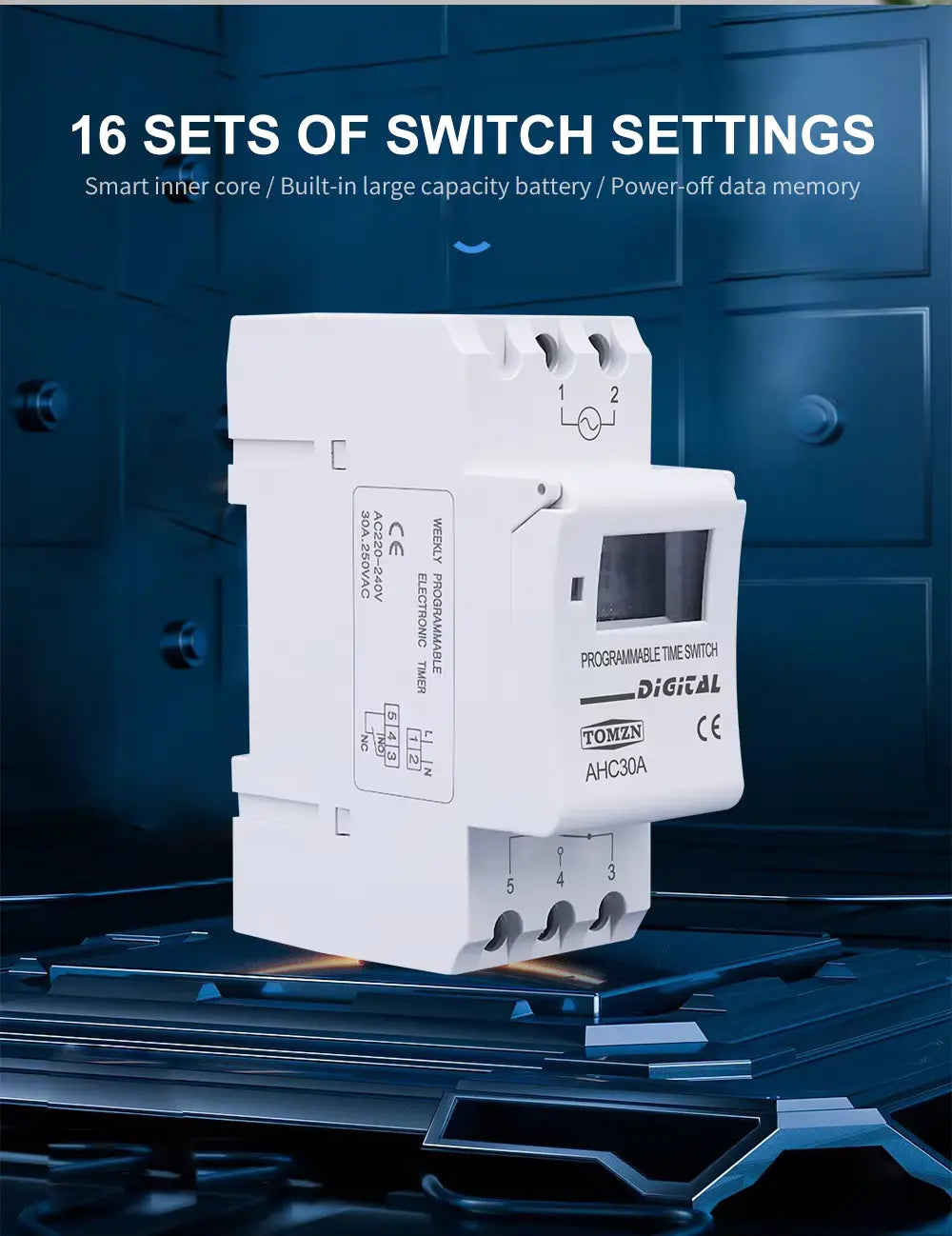

✅ Programmable Timer – Set up to 16 ON/OFF programs for daily or weekly schedules.
✅ Panel-Mounted Design – Easy to install in electric panels for reliable automation.

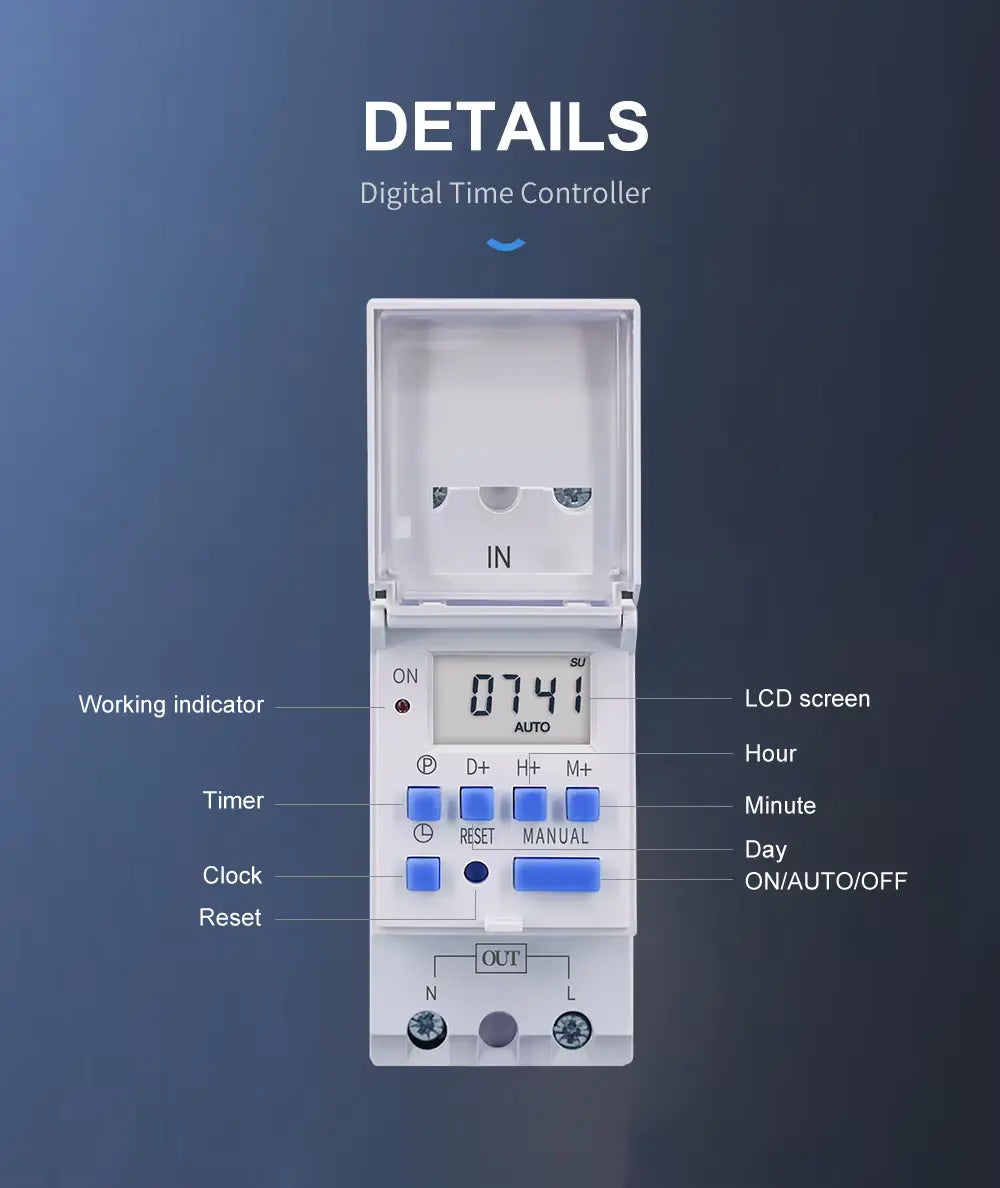

✅ LCD Digital Display – Clear and user-friendly interface for easy operation.
✅ Manual Override Function – Allows instant switching when needed.
✅ Built-in NiMH Battery Backup – Retains settings for 60 days in case of power failure.
✅ Minimum Interval: 1 Minute – Precision timing for optimized power control.
✅ Temperature Range: -20°C to +50°C – Suitable for harsh environments.
✅ AC-Only Operation – Works exclusively with AC voltage.

Technical Specifications:

🔹 Model: AHC30A
🔹 Power Supply: As per order (AC voltage)
🔹 Power Consumption: 4.5VA (Max)
🔹 Switching Contact: 1 Changeover Switch
🔹 Hysteresis: ±2 sec/day (25°C)
🔹 Blackout Protection: 60 Days
🔹 Rechargeable Battery: 1.2V 40mA
🔹 Load Capacity: 16(8)A 250V AC
🔹 Time Range: 1 min – 168 hrs
🔹 Average Timing Error: ±1 sec/24 hrs (at 25°C)
🔹 Weight: 0.15kg

Applications:

🔹 Street Lights & Outdoor Lighting
🔹 Water Pump & Motor Automation
🔹 Factory & Industrial Equipment
🔹 Air Conditioners & Home Appliances
🔹 Security Systems & Signage Control
