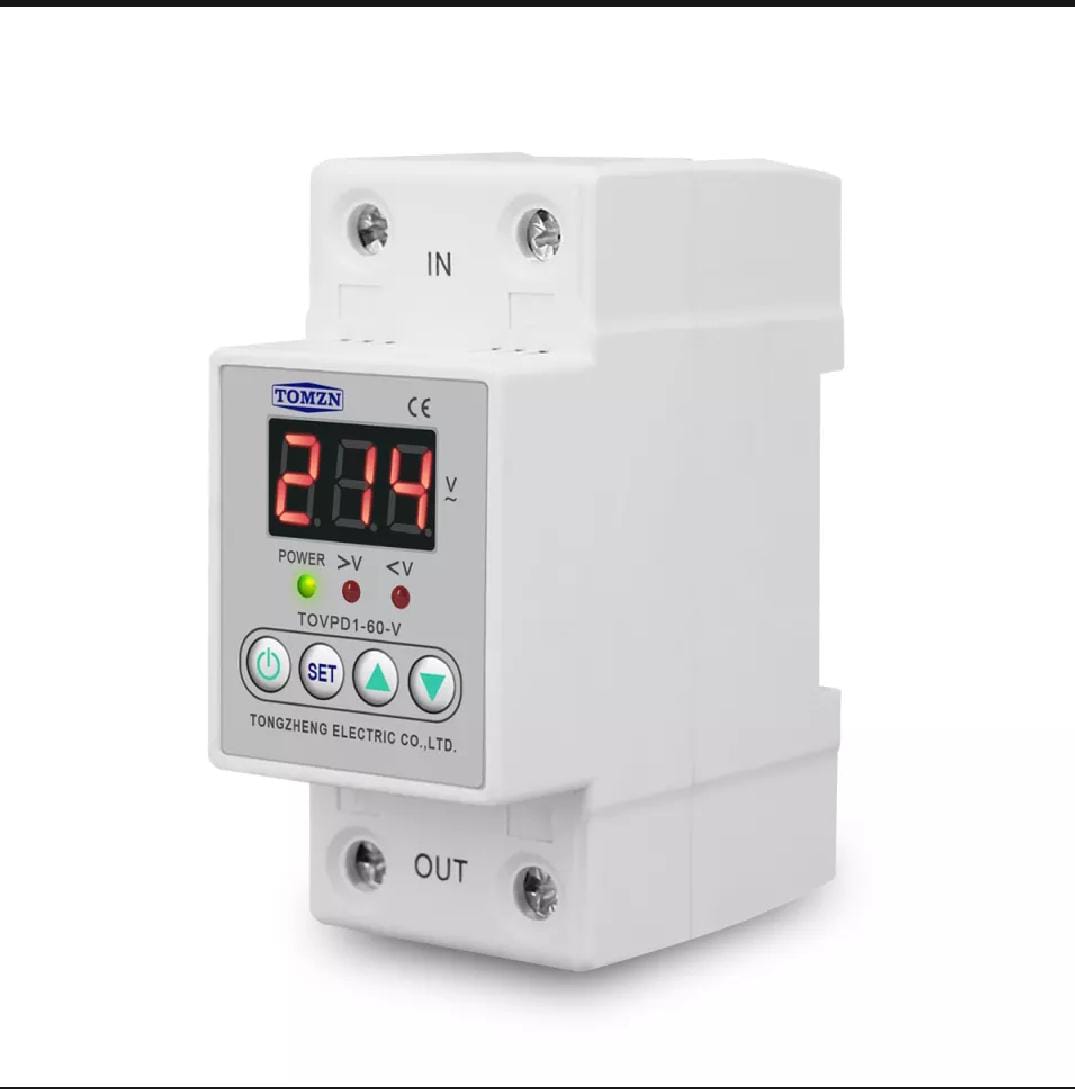

TOMZN 40A & 63A Under and Over Voltage Protector TOVPD1-60-V
TOMZN 40A & 63A Under and Over Voltage Protector TOVPD1-60-V
Regular price
Rs.1,900.00 PKR
Regular price
Rs.2,600.00 PKR
Sale price
Rs.1,900.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
TOMZN 40A & 63A Under and Over Voltage Protector
| Function | Technical Parameter |
|---|---|
| Input Voltage | AC 140-300V |
| Power-on Delay Time | 1-500s (default: 10s) |
| Over-Voltage Protection Value | 230-300V (default: 270V) |
| Over-Voltage Recovery Value | 225-295V (default: 265V) |
| Under-Voltage Protection Value | 140-210V (default: 170V) |
| Under-Voltage Recovery Value | 145-215V (default: 175V) |
| Recovery Delay Time | 1-500s (default: 30s) |
| Action Time | 0.1-30s (default: 1s) |
| Rated Current | 40A, 63A |
| Voltage Calibration | -9.5% to +9.5% (default: 0) |
| Power Consumption | ≤2W |
| Electrical & Mechanical Life | ≥100,000 cycles |
| Boundary Dimension | 86 x 38 x 68MM |
| Wiring | Over-entering, Down-out |
