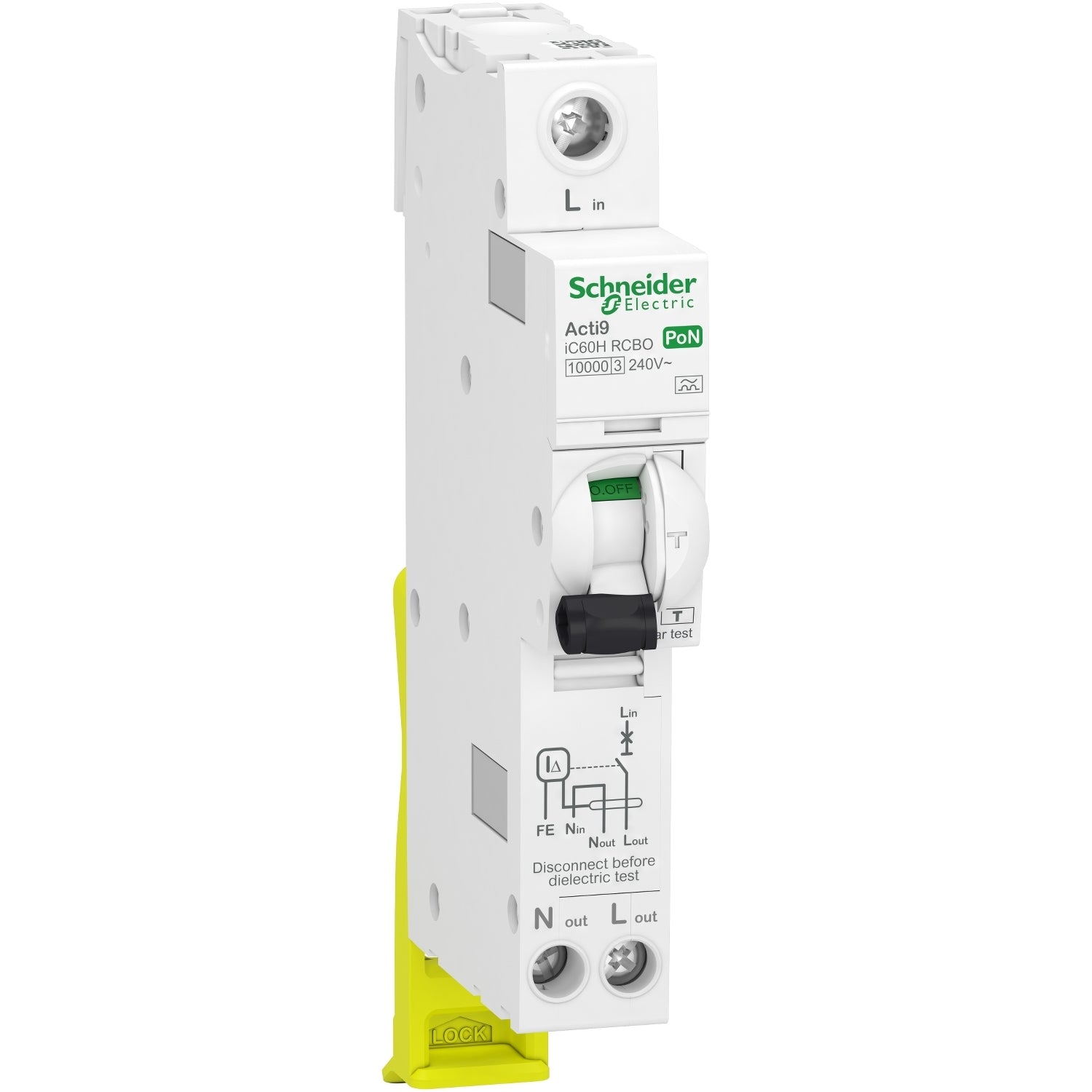

RCBO 1P+N, 10KA 30mA 6A IC60H

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It ensures efficient electrical protection with advanced features.

Specifications:

• Poles: 1P+N
• Rated Current (In): 6A, 10A, 16A, 20A, 25A, 32A, 40A
• Tripping Curve: C
• Earth Leakage Protection: A type, Sensitivity 30mA
• Breaking Capacity: 10,000A (IEC 61009-2-2)
• Operational Voltage (Ue): 240VAC
• Insulation Voltage (Ui): 400VAC
• Impulse Withstand Voltage (Uimp): 4kV
• Frequency: 50/60Hz
• Protection Degree: IP20 (IP40 in modular enclosure)
• Operating Temperature: -15°C to 60°C
• Storage Temperature: -40°C to 85°C
• Color: White (RAL9003)
• Dimensions: 18mm (W) x 110mm (H) x 72mm (D)
• Weight: 156g
• Compliance: BS EN 61009-1, IEC 61009-1
• Features:
  • Visitrip indicator for quick fault detection
  • Visisafe green strip ensures physical contact opening
  • Fast closing mechanism improves lifespan
