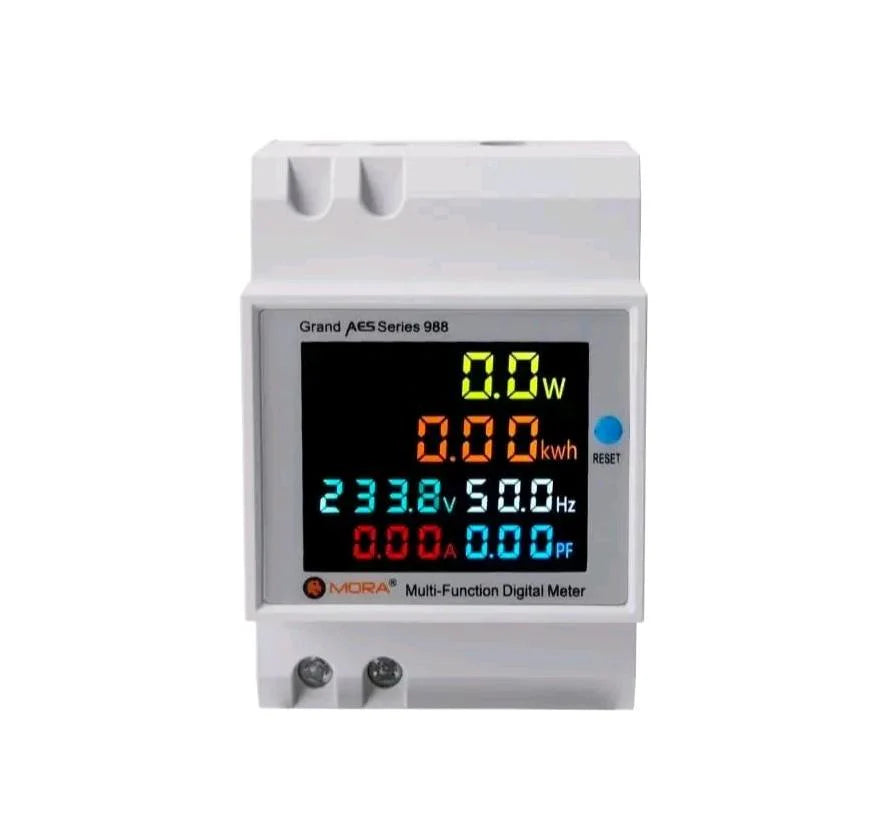

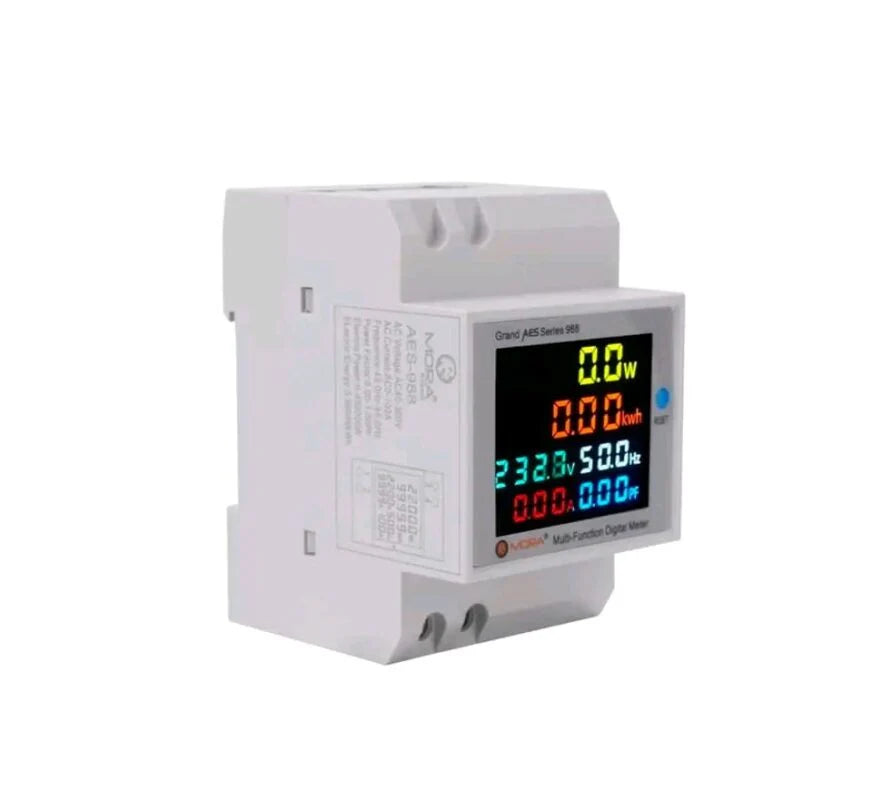

Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor |Asghar Electric
Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor |Asghar Electric
Regular price
Rs.3,350.00 PKR
Regular price
Rs.3,500.00 PKR
Sale price
Rs.3,350.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Measurement accuracy: 1%±2 words
- Measuring range: AC voltage AC40-300V(110V 220V use), AC200-450V(380V 450V use)
- Alternating current: AC0-100A, current display resolution is 0.01A
- Power frequency: 45Hz-65Hz
- Power factor: 0.00-1.00PF
- Active power: the measurement range is 0-45000W, the display resolution between 0-9999.9W is 0.1W, and the rest is 1W
- Electricity: the measurement range is 0-99999kwh, the minimum display resolution of 0-999.99kwh is 0.01kwh
- 1000.0-9999.9kwh minimum display resolution is 0.1kwh
- The minimum resolution of 10000.0-99999kwh is 1kwh
- Measuring speed: about 2 times per second
- Dimensions: 54*80*64mm
- Installation method: rail type
