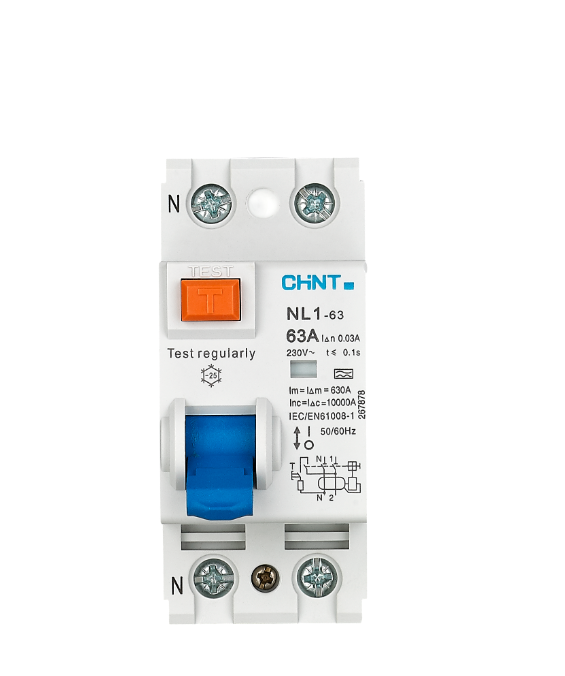

Chint NL1 2 Pole Residual Current Operated Circuit Breakers
Chint NL1 2 Pole Residual Current Operated Circuit Breakers
Regular price
Rs.5,850.00 PKR
Regular price
Sale price
Rs.5,850.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Key Features:
- Essential protection: Guards against electrical hazards without over-current protection.
- Residual current operation: Detects indirect and direct contacts for enhanced safety.
- Fire hazard prevention: Minimizes risks due to insulation faults.
- Versatile application: Suitable for housing, tertiary sector, and industry.
- Comprehensive safety: Protects both people and installations.
Product Specifications:
| Specification | Details |
|---|---|
| Type | Residual Current Operated Circuit Breakers |
| Rated Residual Current/Current Sensitivity | 30-300 mA |
| Short-Circuit Current Rating | 0.03 mA |
| Rated Current | Optional (25, 32, 40, 63 Ampere) |
| Number of Poles | 2 |
| Electrical Life | 2,000 |
| Mechanical Life | 2,000 |
| Fault Current Indicator | Yes |
| Protection Degree | IP20 |
| Ambient Temperature (with daily average ≤35℃) | -5...+40 ℃ |
| Storage Temperature | -25...+70 ℃ |
